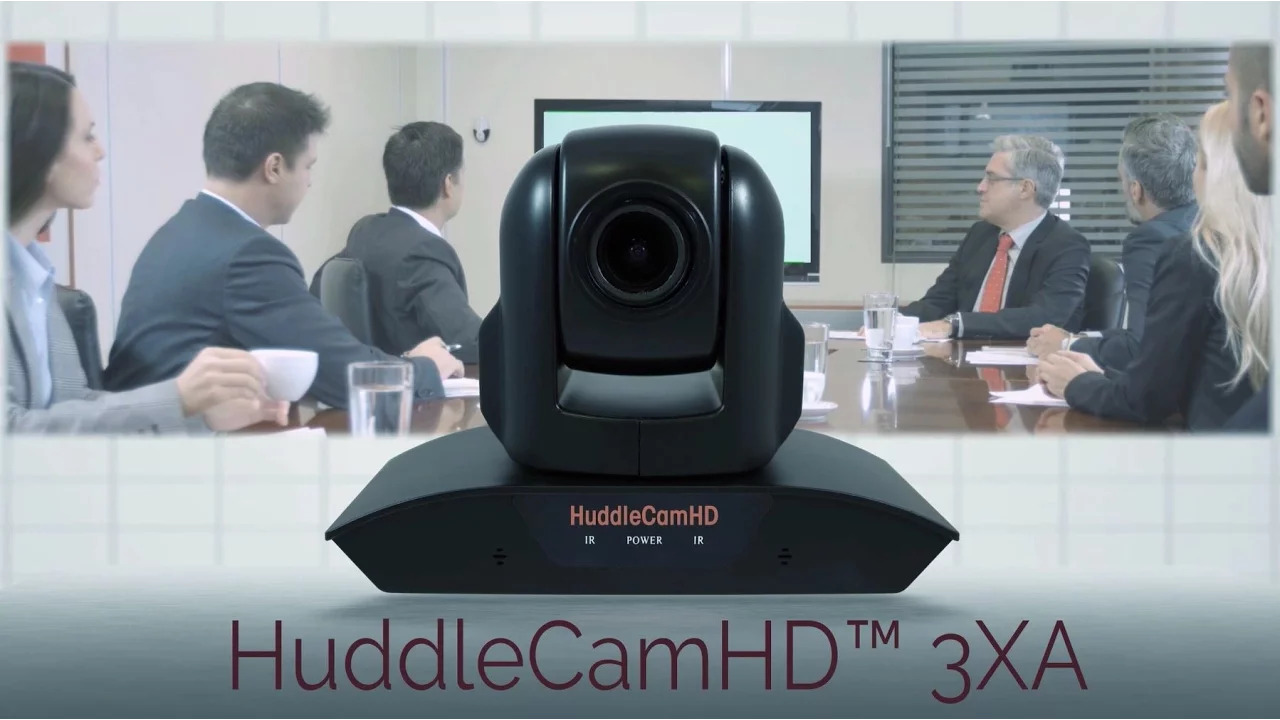

Introducing the HuddleCamHD 3XA Conference Camera - a complete USB web-conferencing camera and microphone solution with 3X Optical Zoom, for capturing all the action even, at long distances in small to medium sized rooms. A customer favorite, the HuddleCamHD 3XA has a built-in dual microphone array providing an easy USB 2.0 connection to any PC or Mac computer for web video conferencing simplicity.
All HuddleCamHD cameras have been designed for plug and play compatibility with web-based video conferencing software such as: Skype, GoToMeeting, WebEX or Zoom. Enjoy seamless integration even with live streaming applications such as Facebook Live.
- Product Identifiers -
MPN: HC3XA-BKUPC: 737993159872
- In The Box -
- 3X Zoom USB 2.0 Camera with built-in mic array
- 12V/2.0A DC Power Adapter
- Mounts: Tripod Mount
- USB 2.0 Data Cable (16ft/4.8m)
- IR Remote Control
- User Manual
- Product Specifications -
Compatibility
- Windows 7/8/8.1/10
- Mac OSX
- Acano
- Adobe Connect
- Blue Jeans
- Cisco Jabber
- Cisco Webex*
- Easy Meeting
- Facetime
- Fuzebox
- Google Hangouts
- GoToMeeting
- Lifesize
- Skype for Business (Lync)
- Polycom Real Presence
- Radavision
- Spontania
- Skype
- TurboMeeting US
- Vidyo
- Zoom.US
- Google Hangouts on Air
- YouTube Live
- Any app that supports the UVC camera interface
* These apps do not support Image Flip
Image Sensor & Lens
- Video CMOS Sensor: 1/2.8" CMOS, 2.1 Mega Pixel
- Resolution: 1080p-30/25, 720p-30/25, SVGA, VGA
- Frame Rate: Up to 30fps (MJPEG)
- Lens Zoom: 3X Optical Zoom f=3.3-10mm F1.6
- Field of View: 32° (tele) to 84° (wide)
Pan/Tilt Movement
- Pan Movement: ±340°
- Tilt Rotation: Up: 90°, Down: 30°
- Presets: 64 Presets
Electrical Index
- Power Supply Adapter: 12V DC 2A
- Input Voltage: 12V DC (10.5-14V DC)
- Input Power: 15W (Max)
Built-in Audio
- Microphone Array: Dual Mics on front of camera base
- Pickup Range: 360° up to 16.5 ft (5m)
- Processing: Advanced Auto Gain and Noise Control
Physical
- Material: Aluminum, Plastic
- Dimensions (in.): 7.1 W x 5.2 H x 3.1 D (5.5 H w/ tilt)
- Dimensions (mm): 180 x 132 x 78 (140 H max w/ tilt)
- Weight: 1.41 lbs (0.64 kg)
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
- Working Environment: Indoor
Rear Board Connectors
- Video Interface: USB 2.0 UVC
- Controller Signal Interface: USB 2.0 Virtual Com Port (VISCA)
- Controller Baud Rate: 9600, 38400 bps
- Audio Interface: USB 2.0 Plug and Play
- Controller Signal Config.: Dip-Switch Pin 6/TTL Signal
- Power Supply Interface: DC 12V 1.2A
Other
- Mfg. Warranty: 2 Years Parts & Labor
Quality Management System
- QMS: Certified ISO9001: 2008
