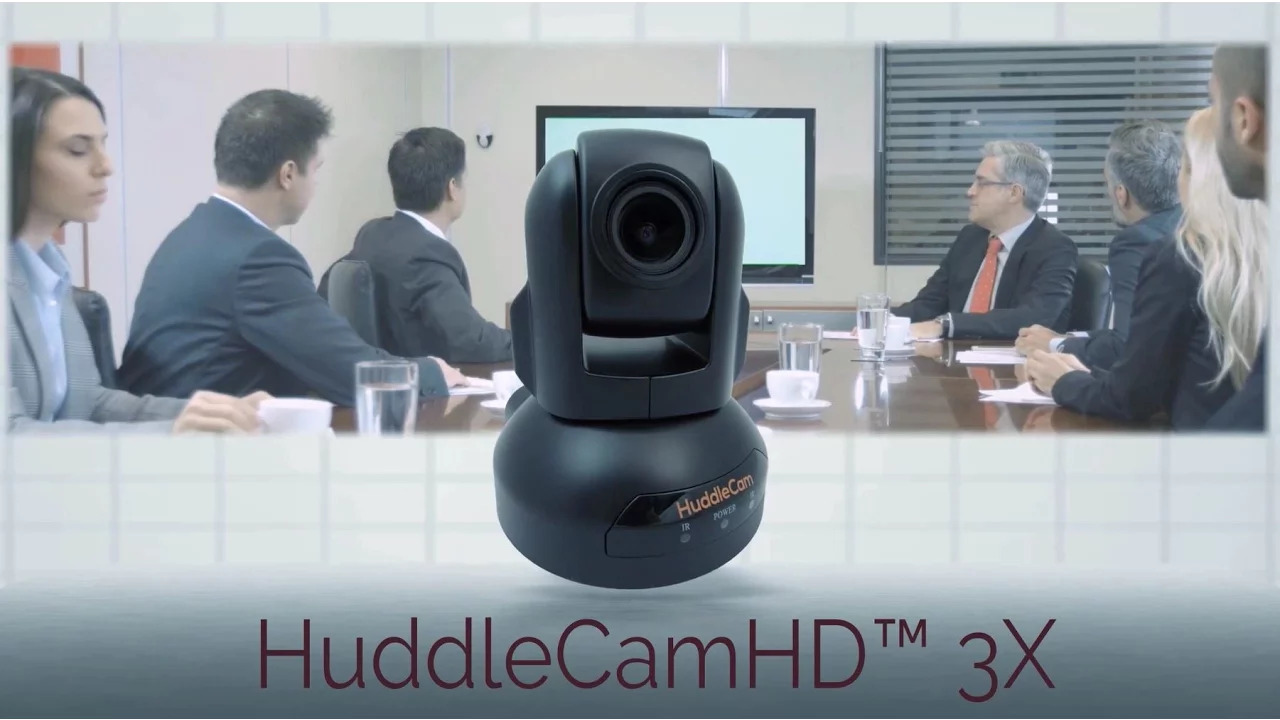

Introducing the new HuddleCamHD 3X Conferencing Camera - totally re-designed with a wide 82° field of view and 3X optical zoom. With a USB 2.0 video connection this conference camera is ideal for virtually any meeting software used in a small to medium sized room.
- Product Identifiers -
MPN: HC3X-WH-G2UPC: 737993157762
- In The Box -
- 3X Zoom USB 2.0 Camera
- 12V/2.0A DC Power Adapter
- Mounts: Tripod Mount
- USB 2.0 Data Cable (16ft/4.8m)
- Serial Control Cable
- RS-232C to RS-485 Adaptor
- IR Remote Control
- User Manual
- Product Specifications -
Compatibility
- Windows 7/8/8.1/10
- Mac OSX
- Acano
- Adobe Connect
- Blue Jeans
- Cisco Jabber
- Cisco Webex*
- Easy Meeting
- Facetime
- Fuzebox
- Google Hangouts
- GoToMeeting
- Lifesize
- Skype for Business (Lync)
- Polycom Real Presence
- Radavision
- Spontania
- Skype
- TurboMeeting US
- Vidyo
- Zoom.US
- Google Hangouts on Air
- YouTube Live
- Any app that supports the UVC camera interface
* These apps do not support Image Flip
Image Sensor & Lens
- Video CMOS Sensor: 1/2.7" CMOS, 2.1 Mega Pixel
- Resolution: 1080p-30/25, 720p-30/25, SVGA, VGA
- Frame Rate: up to 30fps (MJPEG)
- Lens Zoom: 3X Optical Zoom f = 3-10mm F2.0
- Field of View: 36° (tele) to 82° (wide)
Pan/Tilt Movement
- Pan Movement: ±340°
- Tilt Rotation: Up: 90°, Down: 30°
- Presets: 64 Presets
Electrical Index
- Power Supply Adapter: 12V DC 2A
- Input Voltage: 12V DC (10.5-14V DC)
- Input Power: 24W (Max)
- Working Environment: Indoor
Other
- Mfg. Warranty: 2 Years Parts & Labor
Physical
- Material: Aluminum, Plastic
- Dimensions (in.): 4.88 W x 5.7 H x 4.75 D (5.9 H max w/ tilt)
- Dimensions (mm): 124 x 145 x 120 (150 H max w/ tilt)
- Weight: 1.66 lbs (0.75 kg)
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
Rear Board Connectors
- Video Interface: USB 2.0
- Controller Signal Interface: Mini DIN-8 (RS232 IN, RS485 IN, PELCO-D IN/OUT)
- Controller Signal Config.: Dip-Switch Pin 8/TTL Signal
- Baud Rate: 9600 bps
- Power Supply Interface: DC 12V 2A
Quality Management System
- QMS: Certified ISO9001: 2008
