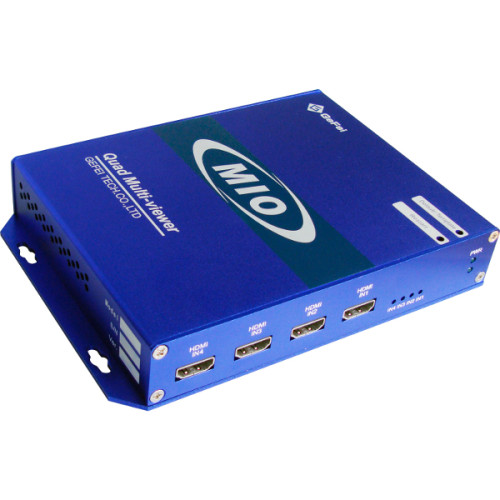

Gra-Vue's MIO MVS-4HD is a low-cost miniature quad HDMI/DVI input multi-viewer system. The MIO MVS-4HDMI supports 4ch. HDMI/DVI inputs and a DVI/HDMI (up to 1920x1080) output. It is a true multi-view display system with rich features, such as configurable display layout, display template restore & recall, real time audio & video survey and on screen alarm, AFD, clock and logo display, dynamic UMD, audio UV meter, etc.
The compact and maintenance-free MIO MVS is perfect for mission critical and live applications. With a built-in WEB server, users can easily remote control the unit with a WEB browser. No special software is needed.
The MIO MVS-4HDMI is the most cost-effective solution for many broadcasting and professional A/V applications, such as control room, production, mobile truck, post-production, and play-out system.
Key Features
- Support embedded audio
- Output up to 1080p with selectable embedded audio channel

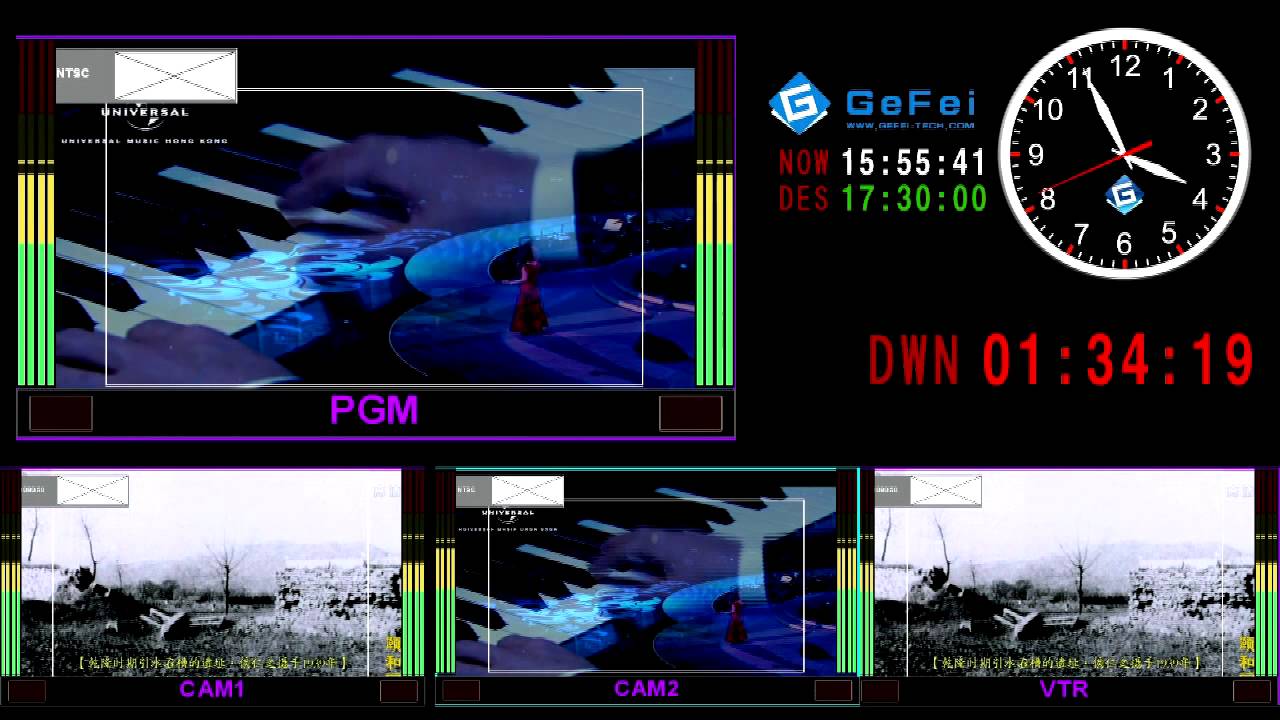

- User configurable display layout with layout template recall/restore
- Real time Video and Audio monitoring with alarm for video/audio lost, frozen, black video, EDH error
- Flexible output options: 4:3, 16:9, customized aspect ratio with 4:3 or 16:9 safe maker
- Selectable air timer and countdown timers, analog and digital clock. User defined Logo display
- 8 channel audio UV meter, Active Format Description (AFD)
- Built-in router assign any input to any display window & any channel can be enlarged to a full screen
- Static programmable multi-color UMD
- Built-in WEB SERVER allows user to easily remote control the unit with a WEB browser
- Quick key to recall the display templates and change the output resolution
- LEDs for each input channel signal status and power
- Product Identifiers -
MPN: MVS-4HDMIUPC: 695984263021
- Product Specifications -
MIO MVS-4HDMI Technical Specifications
- Input: 4x HDMI inputs, Type A
- Video Imput Format:
- 720p 50/60;
- 1080i 50/60;
- 1080p 50/60;
- Support HDMI signal with 8 channel embedded audio
- Support HDCP protocol
- Output: DVI-I x 1, female, support HDMI 1.3a protocol
- Output Format: HDMI 1024x768, 1280x720, 1280x800, 1280x1024, 1366x768, 1400x1050, 1600x900, 1680x1050, 1600x1200, 1920x1080
- Control: RJ 45 Ethernet for built-in WEB Server; DB15 - RS-232 for serial communication, Tally
- Press Button: Display templates recall; Load factory default
- Power: 12 VDC, 1.0A, with lock ring
- LED: Power Status; Input x 4 signal locking
- Temperature: Work: 5-25 °C; storage: 0-40 °C
- Physical dimension: 152mm x 122mm x 30mm
