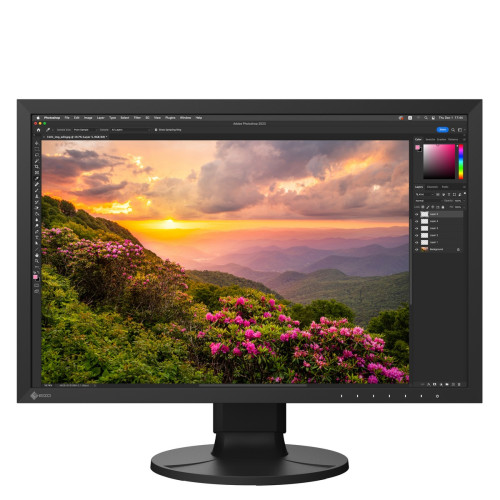

The EIZO ColorEdge CS2400S is a 24.1-inch monitor designed for creative professionals, featuring a 1920 x 1200 resolution and 99% Adobe RGB color space coverage for precise color reproduction. It offers USB Type-C connectivity for seamless video, data transfer, and 70W power delivery, making it ideal for streamlined workflows. The monitor supports 10-bit simultaneous display from a 16-bit LUT, ensuring smooth color gradations and accurate color management with EIZO's ColorNavigator 7 software. Additional features include an ergonomic stand, optional light-shielding hood, and Digital Uniformity Equalizer (DUE) technology for consistent brightness and color across the screen.
Specifications
- Size
24.1" - Native Resolution
1920 x 1200 - Aspect Ratio
16:10 - Brightness (typical)
410 cd/m² - Contrast Ratio (typical)
1350:1 - Input Terminals
USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3)
Built-In Calibration Sensor
Each ColorEdge monitor comes equipped with a built-in calibration sensor. This sensor automatically adjusts the monitor's settings to maintain color accuracy over time, eliminating the need for external calibration devices. The sensor can be set to recalibrate at regular intervals, ensuring consistent performance without interrupting your workflow.
Wide Color Gamut
The ColorEdge monitors support a wide color gamut, reproducing nearly 99% of the Adobe RGB color space and covering significant portions of the DCI-P3 and BT.2020 color spaces used in digital cinema and broadcasting. This wide color gamut ensures that images are displayed with vibrant and accurate colors, making them ideal for color-critical tasks such as photo editing and video production.
10-Bit Simultaneous Display
Using the DisplayPort or HDMI inputs, the ColorEdge monitors offer 10-bit simultaneous display from a 16-bit look-up-table (LUT). This means they can show over a billion colors simultaneously, resulting in smooth color gradations and reduced Delta-E between two adjacent colors. This feature is crucial for professionals who need precise color representation.
Digital Uniformity Equalizer (DUE)
EIZO's patented Digital Uniformity Equalizer (DUE) technology ensures uniform brightness and color across the entire screen. This technology compensates for fluctuations in brightness and chromaticity, providing a stable display that is essential for consistent color work.
Ergonomic and User-Friendly Design
The ColorEdge monitors are designed with user comfort in mind. They come with versatile stands that offer height, tilt, and swivel adjustments, allowing you to position the screen at the most comfortable angle. The monitors also feature seamless electrostatic switches on the front bezel for easy access to settings and built-in carrying handles for portability.
Multiple Connectivity Options
ColorEdge monitors are equipped with a variety of input options including USB Type-C, DisplayPort, HDMI, and DVI-D. These multiple inputs ensure compatibility with a wide range of devices and provide flexibility for various workflows. USB Type-C connectivity allows for easy connection to notebook PCs with a single cable, supporting data transfer, video signal, and power delivery.
Advanced Color Management Software
EIZO's proprietary ColorNavigator 7 software provides an intuitive solution for color management. This software allows users to schedule automatic recalibration, calibrate all color modes simultaneously, and correlate with external sensors to match the studio's internal color management framework. Additionally, the ColorNavigator Network enables centralized quality control of multiple ColorEdge monitors from a web browser, making it ideal for studios and printing houses.
High Dynamic Range (HDR) Support
Several models in the ColorEdge series support HDR, including HLG and PQ curves. HDR technology enhances the display of images by increasing the range of colors and brightness levels, providing a more lifelike viewing experience. This feature is particularly beneficial for video editing and post-production where HDR content is becoming the standard.
Commitment to Quality
EIZO's commitment to quality is evident in their rigorous manufacturing processes and comprehensive warranties. ColorEdge monitors come with a five-year manufacturer's warranty that covers all components including the LCD panel. EIZO also guarantees zero bright pixels for six months from the date of purchase, and the brightness and color are warranted for up to 10,000 hours.
Certifications and Standards
ColorEdge monitors are certified by TUV Reinland for color accuracy and quick stability, and many models are recognized by Fogra as Class A FograCert Softproof Monitors. These certifications ensure that the monitors meet high standards for color accuracy and performance, providing professionals with the confidence that their work will be displayed accurately and consistently.
- Product Identifiers -
MPN: CS2400S-BK-CNXUPC: 690592059212
EAN: 4995047066187
- In The Box -
- Monitor
- Signal Cables (USB Type-C (2m), HDMI (2m))
- AC power cord
- USB Type-A - USB Type-B cable (2m)
- Setup guide
- Factory Report
- Warranty card
- Product Specifications -
Panel | |
|---|---|
| Type | IPS |
| Backlight | Wide-Gamut LED |
| Size | 24.1" (61.1 cm) |
| Native Resolution | 1920 x 1200 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 518.4 x 324.0 mm |
| Pixel Pitch | 0.270 x 0.270 mm |
| Pixel Density | 94 ppi |
| Display Colors | 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT) |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 410 cd/m2 |
| Contrast Ratio (typical) | 1350:1 |
| Response Time (typical) | 19 ms (gray-to-gray) |
| Color Gamut (typical) | Adobe RGB: 99% |
Video Signals | |
| Input Terminals | USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3) |
| Digital Scanning Frequency (H / V) | USB Type-C, DisplayPort: 26 - 76 kHz / 23 - 61 Hz HDMI: 15 - 76 kHz / 23 - 61 Hz |
USB | |
| Upstream | USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 70 W max.) USB 5Gbps: Type-B |
| Downstream | USB 5Gbps: Type-A x 2 USB 2.0: Type-A x 2 |
Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 18 W |
| Maximum Power Consumption | 149 W |
| Power Save Mode | 0.30 W |
| Built-in Calibration Sensor | - |
Features & Functions | |
| Brightness Stabilization | - |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | User, Adobe RGB, sRGB, Calibration (CAL) |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Others | Color Adjustment, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority |
Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 554.4 x 396 - 551 x 245 mm |
| Dimensions (Without Stand, W x H x D) | 554.4 x 362 x 64 mm |
| Net Weight | 8.2 kg |
| Net Weight (Without Stand) | 5.2 kg |
| Height Adjustment Range | 155 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
Environmental Requirements | |
| Operating Temperature | 0 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, RoHS, WEEE, TUV/Ergonomics |
Dedicated Software | |
| Easy Screen-to-Print Color Matching Tool Quick Color Match | Supported |
Proprietary Software | |
| Color Management Software ColorNavigator 7 | Supported |
Warranty | |
| Warranty | 5 Years Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later. |
