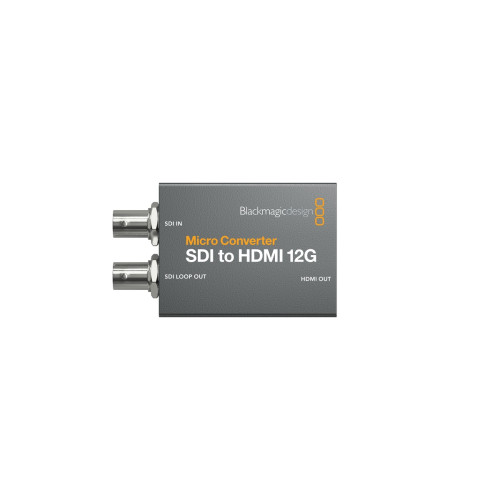

The world's smallest 12G-SDI to HDMI broadcast quality converter! Blackmagic Micro Converter SDI to HDMI 12G is a miniaturized broadcast quality video converter that's been specifically designed for professional monitoring. It includes a 33 point 3D LUT for color calibrating any monitor, projector or television. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48. You get a universal power supply with international AC plug adapters, or you can power it over USB from a television or a mobile phone charger.
- Product Identifiers -
MPN: BMD-CONVCMIC/SH12G/WPSUEAN: 9338716007091
- In The Box -
- Micro Converter SDI to HDMI 12G wPSU
- +5V universal power supply with international socket adapters
- Product Specifications -
Connections
- SDI Video Inputs
1 - SDI Video Outputs
1 x loop out. - HDMI 2.0 Video Outputs
1 x type A. - SDI Rates
270Mb, 1.5G, 3G, 6G, 12G. - Multi Rate Support
Auto detection of SD, HD, 2K, Ultra HD and 4K. - Updates, Configurations and Power
USB Type-C.
Standards
- SD Video Standards
525i59.94 NTSC, 625i50 PAL - HD Video Standards
- 720p50, 720p59.94, 720p60.
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60.
- 1080PsF25, 1080PsF29.97, 1080PsF30.
- 1080i50, 1080i59.94, 1080i60.
- 2K Video Standards
- 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI.
- 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI.
- Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60. - 4K Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. - SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1 - SDI Video Rates
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. - SDI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. - SDI Color Space
YUV - SDI Auto Switching
Automatically detects SD, HD level A or B for 3G-SDI, 2K DCI, Ultra HD and 4K DCI. - HDMI Video Standards
- 525i59.94 NTSC, 625i50 PAL
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
- 1080i50, 1080i59.94, 1080i60
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
- 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
- HDMI Color Precision
4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color. - HDMI Color Space
YUV
Settings Control
Via MacOS™ and Windows™ software utility connected by USB.
Operating Systems
- Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
- Windows 10, 64-bit.
Software
Internal software upgrade via USB.
Power Requirements
- Power Supply
+5V universal power supply included with international socket adapters for most countries. - Power Consumption
4W max. - Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
- Operating Temperature
0° to 40° C (32° to 104° F) - Storage Temperature
-20° to 60° C (-4° to 140° F) - Relative Humidity
0% to 90% non-condensing
Physical Specifications
- Dimensions
3.07in x 1.80in x 0.98in - Weight
5.29oz
Warranty
3 Year Limited Manufacturer's Warranty.
