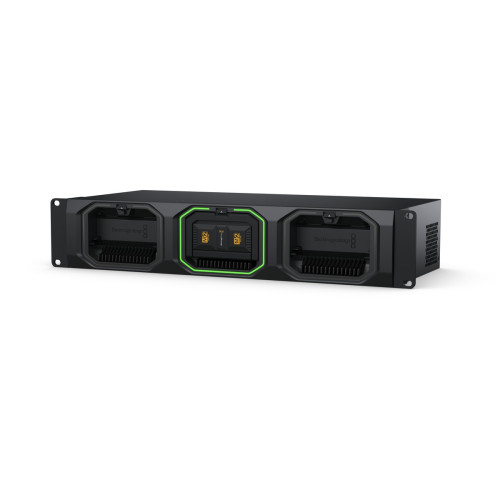

Blackmagic Media Dock accelerates your post production workflow by enabling high speed network sharing and upload from up to 3 Blackmagic Media Modules from Blackmagic URSA Cine cameras. 4 x 10G Ethernet ports allow 4 separate edit stations to connect and edit directly. Blackmagic Media dock also has Ethernet over USB-C, dual AC power inputs for redundancy and an HDMI output for live monitoring of media in real time on a TV or monitor.
- Product Identifiers -
MPN: DWCLDB/DOCNMD03EAN: 9338716008944
- Product Specifications -
Connections
- Interface: 3x removable and hot-swappable Blackmagic Media Modules.
- 10G Ethernet Ports: 4x 10G BASE-T
- USB-C Port: 1x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
- HDMI Monitor Outputs: 1
- Computer Interface: USB-C or Ethernet for shared file access, configuration and software updates.
File Sharing Protocol
- Protocol: SMB
- Computer Connections: 50 max.
Cloud Synchronization
- Compatible Services
- Dropbox
- Google Drive
Storage
- Storage Type: Up to 3 Blackmagic Media Modules.
- External Storage Format: Blackmagic (formatted in camera)
Displays
- HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
- Status Indicator: LED bezel indicator lights around media module bays.
Device Control
- External Control: USB-C or Ethernet for configuration and software updates.
Software
- Software Included
- Blackmagic Cloud Setup Utility
- Blackmagic Proxy Generator Lite
- Internal software upgrade via Blackmagic Cloud Setup using USB-C port
Operating Systems
- Mac 14.3 Sonoma or later.
- Windows 10, 64-bit.
- Windows 11.
Power Requirements
- Power Supply: Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
- Power Usage: TBA
Physical Installation
- 2 rack units.
Physical Specifications
- Dimensions: 19in x 8.11in x 3.54in
- Weight: 10.93lb
Environmental Specifications
- Operating Temperature: 0° to 40° C (32°to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
