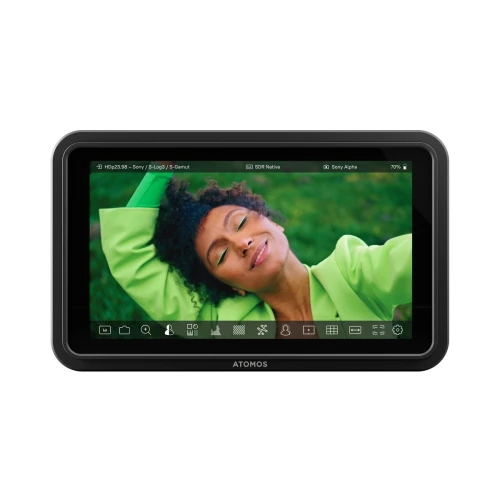

The Atomos Shinobi II is a cutting-edge 5-inch, 1500nit HDR monitor tailored for vloggers, photographers, and creatives. Its 30% thinner design and 50% brighter screen ensure superior outdoor visibility. Equipped with advanced professional monitoring tools, such as histograms, waveforms, and videoscopes, it offers precise image analysis. The USB-C camera control supports Canon, Panasonic, Sony, and Z CAM cameras, with more brands to follow. Its rugged design includes a locking ecosystem for HDMI and USB-C cables, and it features long battery life, 4K monitoring, built-in LUTs, and frame guides for comprehensive use.
Key Features:
- 5-inch, 1500nit HDR Display: Perfect for outdoor visibility with a 50% brighter screen.
- Advanced Monitoring Tools: Includes histograms, waveforms, and videoscopes.
- USB-C Camera Control: Compatible with Canon, Panasonic, Sony, and Z CAM, with future support for more brands.
- Rugged Design: Features a locking ecosystem for HDMI and USB-C cables.
- Comprehensive Usage: Long battery life, 4K monitoring, built-in LUTs, and frame guides for versatile professional use.
- Product Identifiers -
MPN: ATOMSHB003UPC: 814164022941
EAN: 0814164022941
- In The Box -
- Shinobi II
- USB-C 2.0 cable
- HDMI + USB-C locking cable adapter
- Quick Start Guide
- Product Specifications -
Physical
- Dimensions (W x H x D mm): 151mm x 91.5mm x 20.8 mm (28.5mm with locking cable adaptor attached)
- Weight: 210g / 7.4oz.
- Mounting Points: Bottom: 1 x 1/4-inch 20 with anti-rotational points
Environmental
- Ambient Operating Temperature: Up to 40 degrees Celsius
Construction
- Body: ABS Polycarbonate Plastic
- Cooling: Passive heat sink
- Multi-Function Button: Power / Lock Screen
Touch Screen
- Type: Capacitive Touch
Power
- Input Voltage: 6.2V to 16.8V
- Compatible Batteries: 1 x NP-F / L-Series
- Built-in Battery: No
- Continuous Power: Via NPF battery or USB-C PD
- DC-In Connector: Via Battery Eliminator (separate purchase)
- D-Tap: Via optionally available Battery Eliminator or D-Tap to DC-Barrel Cable
Display
- Display Panel: SuperAtom IPS Panel (Capacitive Touch)
- Size: 5.2-inch
- Resolution: 1920 x 1080
- Viewing Angle: 178° H & V
- PPI: 427
- Bit Depth: 10-bit (8+2 FRC)
- Backlight Type: Edge-lit
- Brightness (cd/m² / nits): 1500
- Aspect Ratio: 16:9
- Color Gamut: Rec.709
- Calibration Support: Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus + Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C)
Color Pipeline
- Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
- Gamut: BT2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine, Canon Cinema / DCI P3 / DCI P3+ / BT.2020, Panasonic V Gamut, ARRI Alexa Wide Gamut, Rec.709, JVC LS300, RED DragonColor / DragonColor2 / REDColor2 / REDColor3 / REDColor4 / REDWideGamut
- 3D LUT Display: .Cube format (17 & 33 points supported)
- 3D LUT 50/50 Split: Yes
Monitoring Modes
- SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT
Display Controls
- Backlight, Lift, Gamma, Gain
AtomHDR
- Built-in Technical Log to HDR EOTF
3D LUTs
- Load .Cube files from SD Card into 8 LUT Slots On-Device & use for Monitoring
Video Input
- HDMI: 1 x HDMI (1.4)
- Bit Depth: 8 / 10-Bit
- Chroma Subsampling: YCbCr 4:2:0 & 4:2:2
Audio In/Out
- HDMI Embedded: 2-channel, 24-bit, input dependent
- Headphone Out: 3.5mm headphone jack, 2-channel
Resolution and Frame Rates (Monitoring)
- 4K DCI: 23.98/24/25/29.97/30
- 4K UHD: 23.98/24/25/29.97/30
- FHD 1920 x 1080 Progressive: 23.98/24/25/29.97/30/50/59.94/60
- FHD 1920 x 1080 Interlaced: 50i/60i
- 1280 x 720 Progressive: 50/59.94/60p
Supported Media
- SD Card: Update firmware & upload LUTs
- File System: FAT32, NTFS

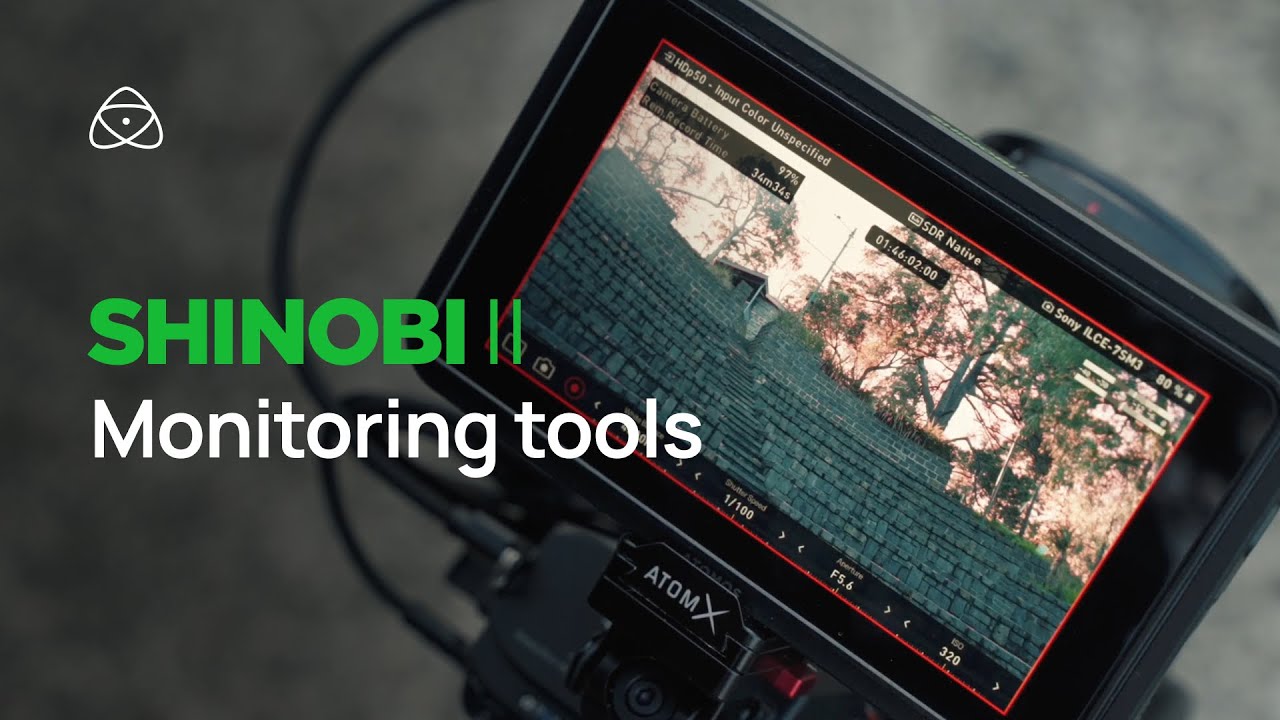

On-Screen Tools
- MultiScope Analysis View: Image, waveform, histogram, & vectorscope
- Waveform: 3 sizes - adjustable opacity & brightness
- Histogram: 3 sizes - adjustable opacity & brightness
- RGB Parade: 3 sizes - adjustable opacity & brightness
- Vectorscope: 1 size - adjustable opacity & brightness
- 1x Zoom: Tap to Zoom
- 2x Zoom: Tap to Zoom
- 4x Zoom: Tap to Zoom
- Focus Peaking: 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity
- Atomos False Color: Yes, with Scale
- Zebra: Adjustable threshold (50% to 105%)
- Isolate Color Channel: Blue only
- Cine Frame Guides: Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
- Social Frame Guides: Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
- Safe Areas: SMPTE Safe Title Area - 93% & 90%
- Grid Markers: 9 grid
- Anamorphic Desqueeze: 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
- Display Flip: Horizontal & Vertical
External Device Control
- USB-C: Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator
- Serial 2.5mm Jack: Camera control for Z CAM cameras via optional USB to Serial Cable
Warranty
- Standard: 1 year. Extended to 2 years on product registration.
