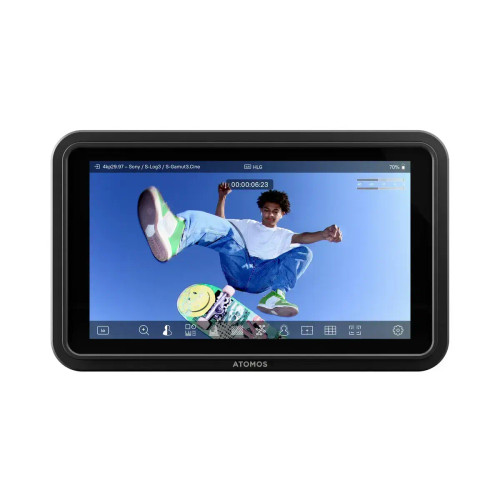

The Atomos Shinobi 7 is a powerful 7-inch HDR monitor designed for professionals who demand precision and reliability. Equipped with a stunning 2200-nit calibrated display, the Shinobi 7 offers exceptional visibility, even in the brightest environments. It supports video monitoring up to 4Kp60 via HDMI and 2Kp60 via 3G-SDI, making it the ideal choice for directors, DPs, focus pullers, vloggers, and video switchers.
This advanced monitor features an intuitive touchscreen interface, granting quick access to critical camera controls like iris, white balance, and shutter angle. The Shinobi 7 simplifies HDR workflows with support for Log, PQ, and HLG signals, delivering over 10 stops of dynamic range in real-time. Built-in tools such as focus peaking, waveform, zebra, false color, and 3D LUT support allow users to achieve perfect framing, exposure, and color grading on the spot.
With dual battery slots, the Shinobi 7 ensures continuous power for all-day shoots, while its lightweight, durable design enhances portability. Professional I/O options allow cross-conversion between HDMI and SDI, further extending its versatility. Whether you're capturing cinematic footage, streaming live, or working in studio environments, the Shinobi 7 is your go-to monitor for unparalleled accuracy and performance.
Features
- 7-Inch HDR Touchscreen: Ultra-bright 2200-nit display for maximum visibility.
- Supports 4Kp60 and 2Kp60: HDMI and 3G-SDI inputs for versatile workflows.
- Advanced Monitoring Tools: Includes waveform, zebra, focus peaking, and false color.
- Custom 3D LUT Support: Load and apply LUTs for precise color grading.
- Dual Battery Slots: Enables hot-swapping for continuous power.
- Cross-Conversion: Converts between HDMI and SDI for flexible output options.
- Log and HDR Compatibility: Supports Log, PQ, and HLG signals with 10+ stops of dynamic range.
- Intuitive Touch Controls: Quick access to camera features like iris and white balance.
- Lightweight and Durable Design: Built for portability and field use.
- Field Calibration Support: Factory-calibrated for Rec.709 with user calibration options.
- Product Identifiers -
MPN: ATOMSHB002UPC: 814164022576
- In The Box -
- Shinobi 7
- International DC power adaptor
- Quickstart guide
- Product Specifications -
Physical Specifications
- Weight (Monitor Only): 577g / 1.04lb (excluding batteries)
- Dimensions (Monitor Only): 198mm x 133mm x 39mm
- Mount Points: 1x Anti rotation 1/4" / 3/8 top and bottom
Construction
- Body: Polycarbonate ABS Plastic
- Cooling: Actively controlled fan and heat sink
- Multi-function Button: Power / lock screen
Power
- Input voltage (battery): 6.2V to 16.8V
- Battery Voltage: 7.2V
- Operating Power: 5.8-7.2V
- Compatible Batteries: 2 x NPF L series
- Battery Run Time: 5200mAh - up to 2hrs, 7800mAh - up to 3hrs
- DC In: Locking DC jack
- Continuous power: Dual battery slots
- DTAP: Via optional DTap to DC cable
Display
- Touchscreen: SuperAtom IPS panel (capacitive touch)
- Size: 7"
- Resolution: 1920 x 1200
- PPI: 325
- Bit Depth: 10-bit (8+2 FRC)
- Backlight: Edge lit
- Brightness (cdm2 /Nits): 2200 ± 10%
- Aspect Ratio: 16:9 Image Display
- Color Gamut: Rec.709
- Calibration Support: Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)
Technology
- 3D LUT Display: .Cube Format
- 3D LUT Down Stream: Loop out - HD only
- 3D LUT 50/50: Yes
- Monitoring Modes: Native / HLG / PQ / 3D LUT
- HDR Output Conversion: HLG / PQ
- Gamma: Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog,JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log, Olympus OM-Log, Lecia L-Log
- Gamut: BT2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3. cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide GamutRec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
Video Input
- HDMI: 1x HDMI (2.0) 4Kp60
- SDI: 1x 3G SDI - 2k p60
- Bit Depth: 8 / 10-bit
- Video Chroma Subsampling: YCbCr 420 & 422
Video Output
- HDMI: 1x HDMI (2.0) 4Kp60
- SDI (Play Out): 1x 3G SDI - 2Kp60
Video Signal Conversion
- HDMI to SDI: Yes
- SDI to HDMI: Yes
Audio In/Out
- HDMI: 2ch 24-bit, input dependent
- SDI: 8ch 24-bit, input dependent
- Headphone out: 3.5mm 2ch.
Timecode/SYNC
- Embedded: HDMI and SDI
Supported Codecs & Frame Rates (Record & Playback)
- Supported Resolution & FPS (Monitor Only)
- 4K DCI: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
- 4K UHD: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
- 2K DCI 2046 x 1080: SDI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
- FHD 1920 x 1080 Progressive: HDMI and SDI : 23.98/24/25/29.9/30/50/59.94/60p
- FHD 1920 x 1080 Interlaced: 50/59.94/60i
- 1280 x 720p: 50/59.94/60p
Supported Media
- SD: SD Card slot for LUTs / Firmware
- File System: ExFAT
On Screen Tools
- MultiScope Analysis View: Image, selectable Waveform, Histogram, Vector Scopes and Audio bars
- Waveform: Yes, 3 size / Position
- Histogram: Luma and RGB
- RGB Parade: Yes, 3 size / Position
- Vector Scope: Yes, 2 size / Position and zoom
- Magnification: 1x Zoom, 2x Zoom, 4x Zoom
- Focus Peaking: Color selected / focus assist sharpening / threshold setting / color / Mono / edges only
- False Color: Yes
- Zebra: Yes, adjustable
- Isolate Color Channel: Blue Only
- Cine Frame Guides: 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
- Social Frame guides: 9:16, 1:1, 191:1, 4:5
- Safe Areas: Action and Graphic
- Grid Markers: 9 Grid
- Anamorphic Desqueeze: 1.25x, 1.33x, 1.5x, 1.8x, 2x
- Display Flip: Vertical and Horizontal selfie mode
Onboard Processing
- 4K UHD Downscale for HD: Yes
- DCI Crop: Yes
External Device Control
- Serial 2.5mm Jack: USB-C to Serial
- USB: Camera control for supported cameras in future firmware release
- RJ45: Camera control for supported cameras in future firmware release
Warranty
- Standard: 1 year. Extended to 3 years on product registration
